Description
■ Description

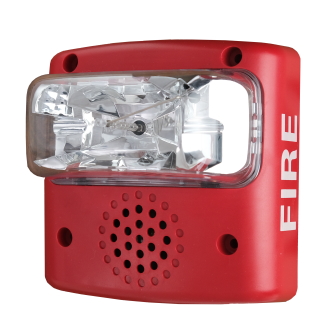

The Multi-tone & strobe notification appliance, EVCA-AP3-W-MS is non-addressable, powered by 2-wire DC24V, and indoor use only. The EVCA-AP3-W-MS offer a various range of audible/visual settings in the device.
The Audible settings include Broadband Horns, Horn, Bell, Siren, Slow Whoop, 500Hz Horn, and Hi/Lo that can each be set for Standard and High volume. The visual candela settings can be configured for 15, 30, 75, and 110 cd in field. The audible setting is by a dipswitch located on the back of the unit, and the candela setting is by a scroll switch on the front of the unit.
When multiple units of EVCA-AP3-W-MS are connected to the EVCA-AP3-SFM, the sound and light between those units on the same line can be synchronized.
Notice:
Power supplying for the EVCA-AP3-W-MS must be the regulated
DC. The FWR voltage such of the NFU-7000 NAC circuit
output cannot use for the EVCA-AP3-W-MS.
■ Features
• Compact Design
• Candela settings — 15, 30, 75, 110 cd
• Multiple field-selectable audible settings
–Broadband Horns, Horn, Bell, Siren, Slow Whoop, 500Hz
Horn, Hi/Lo
— High and Standard volume settings
• Red finish
• Audible settings are located on the back of the unit to prevent
tampering
• Supports wire type : 18 to 12 AWG
• UL 464, UL 1971
• For indoor applications
