Description

• Provide the same functions as the main display on the SPERA fire alarm control panel
• Available in two models
– NK-AN-LCD large 80 character (4×20) back-lit LCD display (a NK-AN-BB1R enclosure not included)

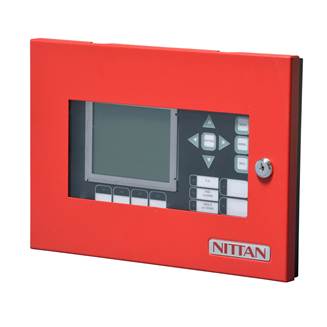

– NK-AN-LCDG 640 character (16×40) graphical back-lit LCD display (included in a NFU-AN-GL package model with a NK-AN-BB1R)
• Connect to any node to annunciate the full network system or selected network nodes
• Do not take up a node address
• Easy to use menu system complete with a directional keypad and switches
• Four Status Queues with selector switches and LEDs for Alarm, Supervisory, Trouble and Monitor to sort events
• Support programmable modules and annunciator modules
• NK-AN-LCDG displays eight events per page with each event displayed over 2 lines with 40 characters per line
• Both models can mount in a NK-AN-BB1R or NK-AN-BB2R or NK-AN-BB3R enclosure
