Description

■ Description

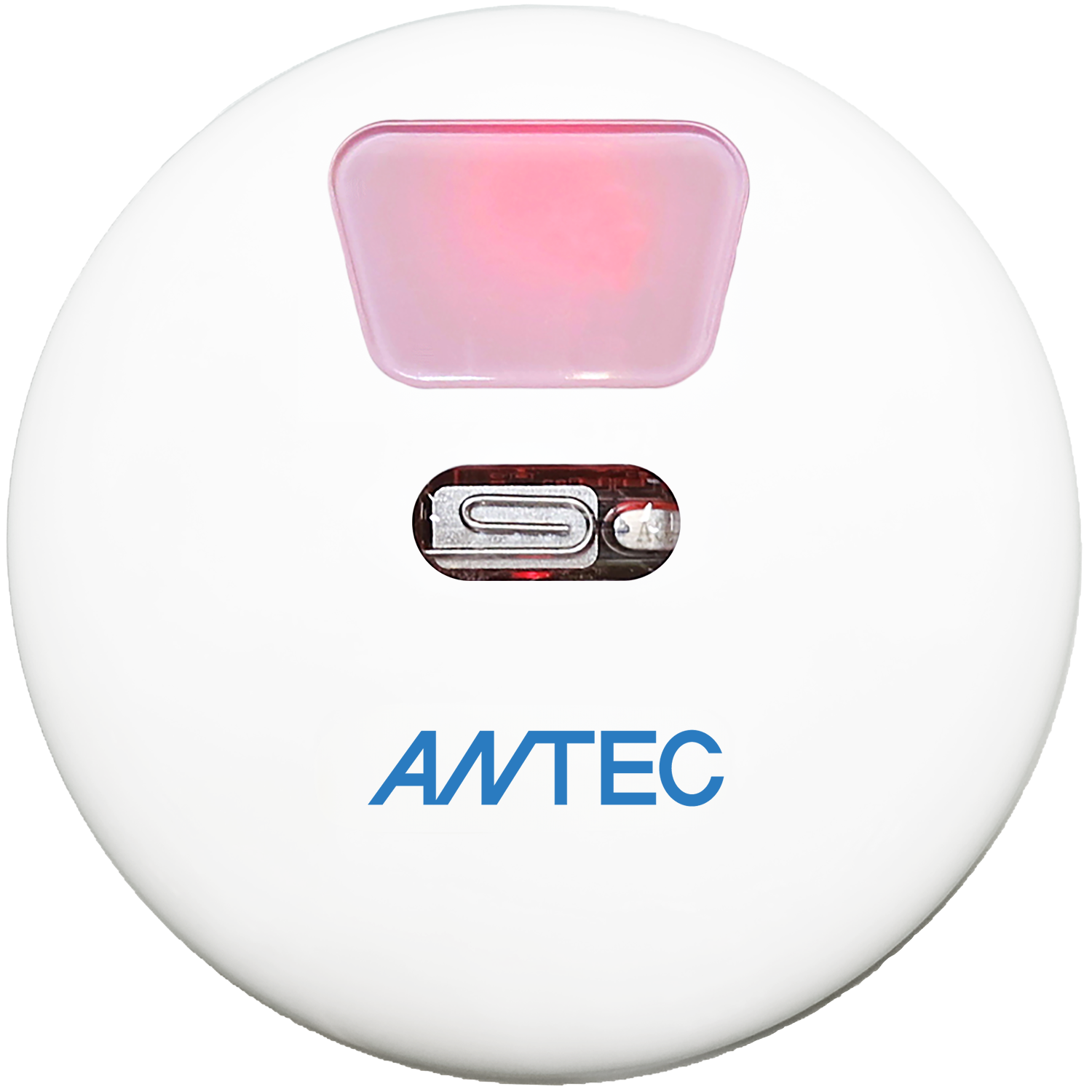

The SKH047MF is a highly sensitive and compact UV
Flame Detector certified with FM Approval.
Designed to rapidly detect ultraviolet radiation (UV-C, 185
nm to 260 nm) emitted from flames, it incorporates propri-
etary technology that isolates flame UV from sunlight and
ambient illumination to minimize false alarms.
Featuring a dual LED status indicator, voltage alarm
output, and DIP-switch configurable timer settings, the
SKH047MF is ideal for reliable indoor flame monitoring.

■ Features
• High-Sensitivity UV Detection: Operating wavelength
range of 185 nm to 260 nm.
• FM Approval Certified: Complies with FM 3260:2021
standards.
• False Alarm Reduction: Proprietary UV separation tech-
nology effectively distinguishes flames from sunlight.
• Ultra-Compact Design: World’s smallest class UV flame
detector (Φ72.8 mm × H 34.5 mm, approx. 75 g).
• Status LED Indicators: Blue LED for standby, Red LED
for flame alarm.
• IP64-Compliant with Splash & Dust Standards
